Distillation Head Manufacturer,Supplier and Exporter in India
Product Code : SCL-GLE-10367

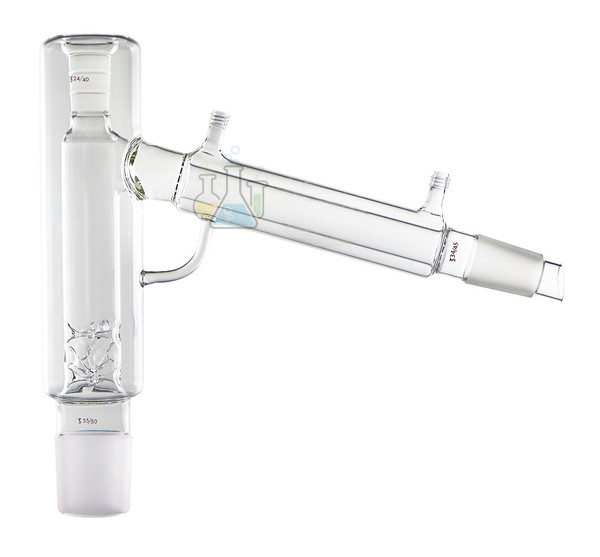

The 55/50 Distillation Head is a jointed laboratory glassware component used for directing vapour from a compatible boiling flask or reactor toward a condenser, receiver, or distillation assembly. This N3 distillation head is specified with a 55/50 connection and a 34/45 outlet for compatible laboratory setups.
Product Description
The 55/50 N3 Distillation Head - 34/45 Outlet from Lab Glassware Manufacturer is intended for advanced distillation and vapour-transfer assemblies where matched ground-glass joints are required. The supplied product name confirms the 55/50 joint reference, N3 distillation-head reference, and 34/45 outlet.
A distillation head is normally positioned between a boiling vessel and a condenser or receiver adapter. Verified related pages list distillation adapters, still heads, jacketed distillation heads, condensers, and glass joints. Exact geometry, angle, thermometer pocket, glass grade, wall thickness, vacuum rating, and certificate documentation should be confirmed before catalogue approval.
Key Features
- 55/50 joint reference: intended for compatible large-format ground-glass assemblies.
- 34/45 outlet: supports connection to matching condenser, adapter, or receiver glassware.
- N3 distillation-head format: suitable for multi-neck or process-style distillation layouts where verified.
- Capacity not applicable: this is a glassware connector, not a measuring or storage vessel.
- Vapour-transfer function: directs vapour from boiling or reaction glassware toward downstream components.
- Jointed-glassware compatibility: useful with verified flasks, condensers, receivers, adapters, and clips.
- Specification-dependent safety: pressure, vacuum, heat, and chemical compatibility must be verified.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
55/50 N3 Distillation Head - 34/45 Outlet |
|
Primary Keyword |
55/50 Distillation Head |
|
Secondary / Semantic Keywords |
N3 distillation head, 34/45 outlet distillation head, jointed distillation adapter, glass distillation head, laboratory still head, vapour transfer adapter, distillation glassware, 55/50 glass joint |
|
Brand / Supplier |
Lab Glassware Manufacturer |
|
Product Category |
Laboratory Glassware / Glassware Adapter / Distillation Head |
|
Capacity |
Not applicable |
|
Main Connection |
55/50 |
|
Outlet Connection |
34/45 |
|
Design Reference |
N3 distillation head |
|
Included Components |
Distillation head only |
What's Included in the Kit
- 55/50 N3 Distillation Head with 34/45 outlet
- Keck clip, thermometer adapter, receiver adapter, condenser, certificate, or packaging
Applications / Uses
- Routing vapour in compatible distillation assemblies
- Connecting boiling flasks, reactors, condensers, and receiver adapters
- Laboratory solvent recovery and purification workflows
- Advanced teaching demonstrations on distillation glassware setup
- Research, QC, pharmaceutical, and testing-lab distillation work
- Custom jointed-glassware assemblies where 55/50 and 34/45 joints are required
How to Use the 55/50 N3 Distillation Head - 34/45 Outlet
- Confirm that the 55/50 and 34/45 joints match the planned flask, condenser, and receiver setup.
- Inspect all joints for chips, cracks, scratches, residue, or poor grinding surfaces.
- Clean and dry the distillation head before assembly.
- Connect the 55/50 joint to the compatible boiling vessel or reactor opening.
- Connect the 34/45 outlet to a compatible condenser, receiver, or adapter.
- Support the assembly with clamps so no joint carries unsupported weight.
- Start heating or vacuum only after leak checks and full apparatus verification.
- After use, cool, vent safely, disassemble carefully, clean, dry, and store padded.
Safety note: Do not use this distillation head under vacuum, pressure, rapid heating, corrosive vapours, or hazardous solvent conditions unless the glass grade, wall thickness, joint fit, and complete apparatus rating are verified. Use PPE, clamps, shields, and a fume hood where required.
Care & Maintenance
- Clean vapour-path surfaces after each use to prevent residue and contamination.
- Protect 55/50 and 34/45 joints from chips, scratches, and stuck connections.
- Store in padded glassware storage away from heavy flasks and metal clamps.
- Remove from service if cracks, leaks, joint damage, or stress marks appear.
Why Choose Lab Glassware Manufacturer
Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its catalogue includes glassware adapters, distillation heads, condensers, glass joints, flasks, stopcocks, and vacuum-related components. The product range supports education, research, QC, pharmaceutical, testing, and institutional procurement requirements.
Frequently Asked Questions
What is a 55/50 Distillation Head used for?
A 55/50 Distillation Head is used to route vapour from a compatible boiling flask or reactor toward a condenser, receiver, or distillation assembly.
What does 55/50 mean?
55/50 is the ground-glass joint reference stated in the product name. Confirm whether it is cone or socket configuration before assembly.
What does the 34/45 outlet connect to?
The 34/45 outlet connects to compatible 34/45 glassware, such as a condenser, receiver adapter, or downstream distillation component.
Is this made from Borosilicate 3.3?
The exact glass grade is not confirmed for this item. Add Borosilicate 3.3 only after checking the supplied product specification.
Can it be used under vacuum?
Vacuum suitability is not confirmed. Use under vacuum only if the distillation head and full connected assembly are rated for that condition.
Does it include a thermometer port?
A thermometer port is not confirmed from the supplied product name. Confirm N3 geometry and port details before final publication.
For related distillation and jointed-glassware products, explore glassware adapters, glass condensers, glass joints, and laboratory flasks.
