Product Code : SCL-EI-10550

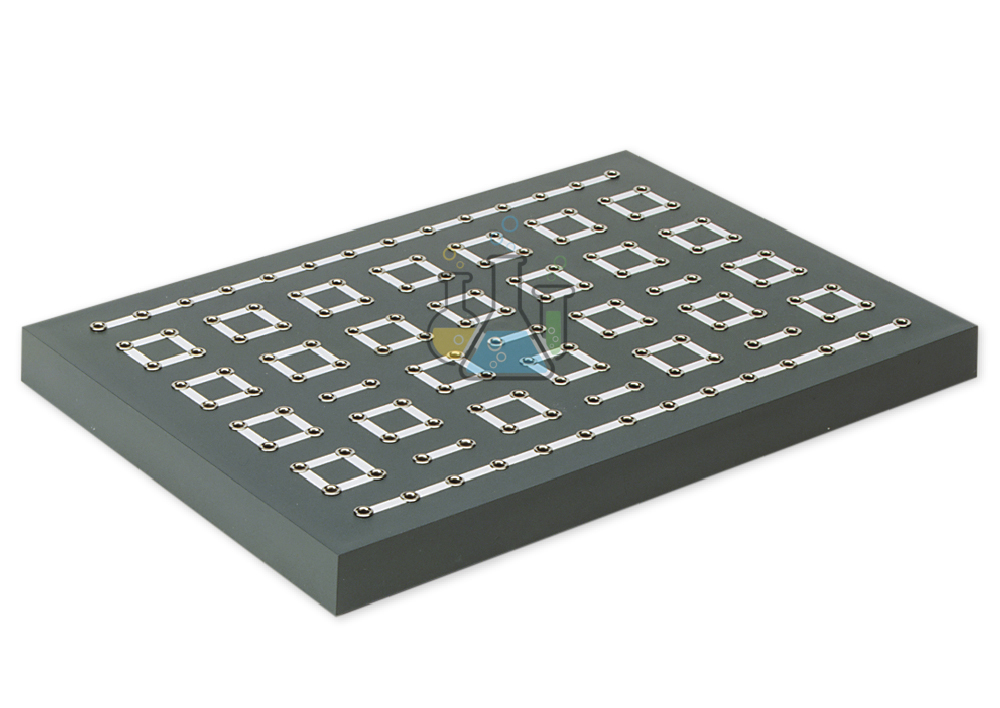

The Universal Plugboard is a reusable circuit-building board used for assembling electrical and electronic experiment circuits with plug-in components, connecting leads, and compatible modules. It is suitable for schools, colleges, STEM laboratories, electronics trainers, physics practical rooms, and student workbenches where learners build circuits without permanent soldering.

Product Description

The Universal Plugboard from Lab Glassware Manufacturer is designed for classroom experiments in basic electricity, electronics, circuit design, and component testing. It provides a practical working surface where students can connect resistors, switches, lamps, LEDs, capacitors, diodes, transistors, jumper leads, and measuring instruments according to circuit diagrams.

This product should be described as a universal plugboard or circuit assembly board only after the final board format is confirmed. The supplied model may use plug-in sockets, spring terminals, banana sockets, modular component positions, or a dedicated educational plug-in system. Final board size, socket count, socket pitch, electrical rating, terminal type, component compatibility, and supplied accessories must be verified before catalogue publication or tender submission.

Key Features

• Reusable universal plugboard for student circuit-building exercises.
• Supports solder-free circuit assembly when compatible plug-in components are supplied.
• Useful for teaching current, voltage, resistance, polarity, switching, and circuit continuity.
• Suitable for school physics labs, STEM labs, electronics labs, and training workshops.
• Helps students build, modify, and troubleshoot circuits quickly during practical sessions.
• Can support Ohm’s law, series circuits, parallel circuits, transistor circuits, LED circuits, and switch circuits where compatible components are used.
• Board size, socket layout, voltage rating, current rating, and compatible modules must be confirmed.

Technical Specifications

What's Included in the Kit

• Universal plugboard
• Connection sockets, terminals, or plug-in contact points
• Jumper wires, plug-in leads, banana leads, or crocodile leads
• Resistor, LED, lamp, switch, capacitor, diode, transistor, or component modules
• Power input terminals or low-voltage supply connectors
• Storage box, component tray, or labelled packing
• Instruction sheet, circuit examples, or student experiment guide

Applications / Uses

• Assembling student electrical and electronic circuits without soldering.
• Teaching open circuits, closed circuits, continuity, polarity, and circuit layout.
• Demonstrating Ohm’s law, series circuits, parallel circuits, voltage division, and current flow.
• Building simple LED, lamp, switch, resistor, capacitor, diode, and transistor circuits.
• Supporting circuit troubleshooting and component identification activities.
• Using with related products from Physics Lab Equipment.
• Supporting electronics practical rooms through General Lab Equipment.
• Requesting institutional or OEM supply through Tenders/OEM and Contact Us.

How to Use the Universal Plugboard

1. Place the universal plugboard on a dry, stable, insulated laboratory bench.
2. Confirm that the board rating matches the selected student power supply and circuit components.
3. Plan the circuit using the supplied diagram, worksheet, or teacher instruction.
4. Insert compatible plug-in components, jumper leads, switches, lamps, resistors, or electronic modules into the correct positions.
5. Check polarity before connecting LEDs, diodes, electrolytic capacitors, transistors, or DC modules.
6. Connect the board to a suitable low-voltage power supply only after verifying the circuit layout.
7. Switch on power and observe lamp brightness, LED response, meter reading, or circuit behaviour.
8. Switch off the power supply before changing wiring, removing components, or modifying the circuit.

Safety note: Use only with a suitable low-voltage classroom power supply within the confirmed board rating. Do not connect the universal plugboard directly to mains electricity, overloaded circuits, damaged leads, or unknown power sources.

Care & Maintenance

• Keep the plugboard clean, dry, and free from dust, loose wire strands, and metal particles.
• Do not force oversized leads, bent pins, or incompatible modules into the sockets.
• Inspect sockets, terminals, labels, jumpers, and insulation before every student practical session.
• Store small components and leads in labelled compartments to prevent loss and mixing.
• Replace burnt, loose, corroded, or damaged components before classroom use.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational and institutional buyers. The brand supports schools, colleges, universities, research laboratories, distributors, and export customers with physics, electronics, engineering, and general laboratory products. This Universal Plugboard can be supplied for student electricity and electronics exercises when final board specifications are verified. Buyers should confirm board format, socket count, electrical rating, compatible components, supplied accessories, and documentation before procurement.

Frequently Asked Questions

What is a Universal Plugboard used for?

A Universal Plugboard is used to assemble and test student electrical and electronic circuits using plug-in components, connecting leads, and compatible circuit modules.

Is the Universal Plugboard a complete circuit kit?

No. It should be treated as a circuit assembly board unless the final quotation confirms that leads, resistors, lamps, switches, meters, power supply, and experiment components are included.

Can students use it for Ohm’s law experiments?

Yes, if the board supports the required resistors, meters, power supply, and connecting leads within the confirmed voltage and current ratings.

Can the plugboard be connected to mains electricity?

No. It should be used only with a suitable low-voltage classroom power supply unless the verified product manual states otherwise.

Which components are compatible with the board?

Compatible components may include resistors, switches, LEDs, lamps, capacitors, diodes, transistors, jumper leads, meters, and plug-in modules, but the exact compatibility must be confirmed.

What should be confirmed before ordering?

Confirm board size, socket count, socket pitch, plug format, voltage rating, current rating, terminal type, compatible components, included leads, component set, packing, and student experiment guide availability.

For more plugboards, circuit kits, power supplies, electronics trainers, and student physics equipment, explore Physics Lab Equipment from Lab Glassware Manufacturer.
