Jacketed Distillation Head Manufacturer,Supplier and Exporter in India

Product Code : SCL-GA-10324

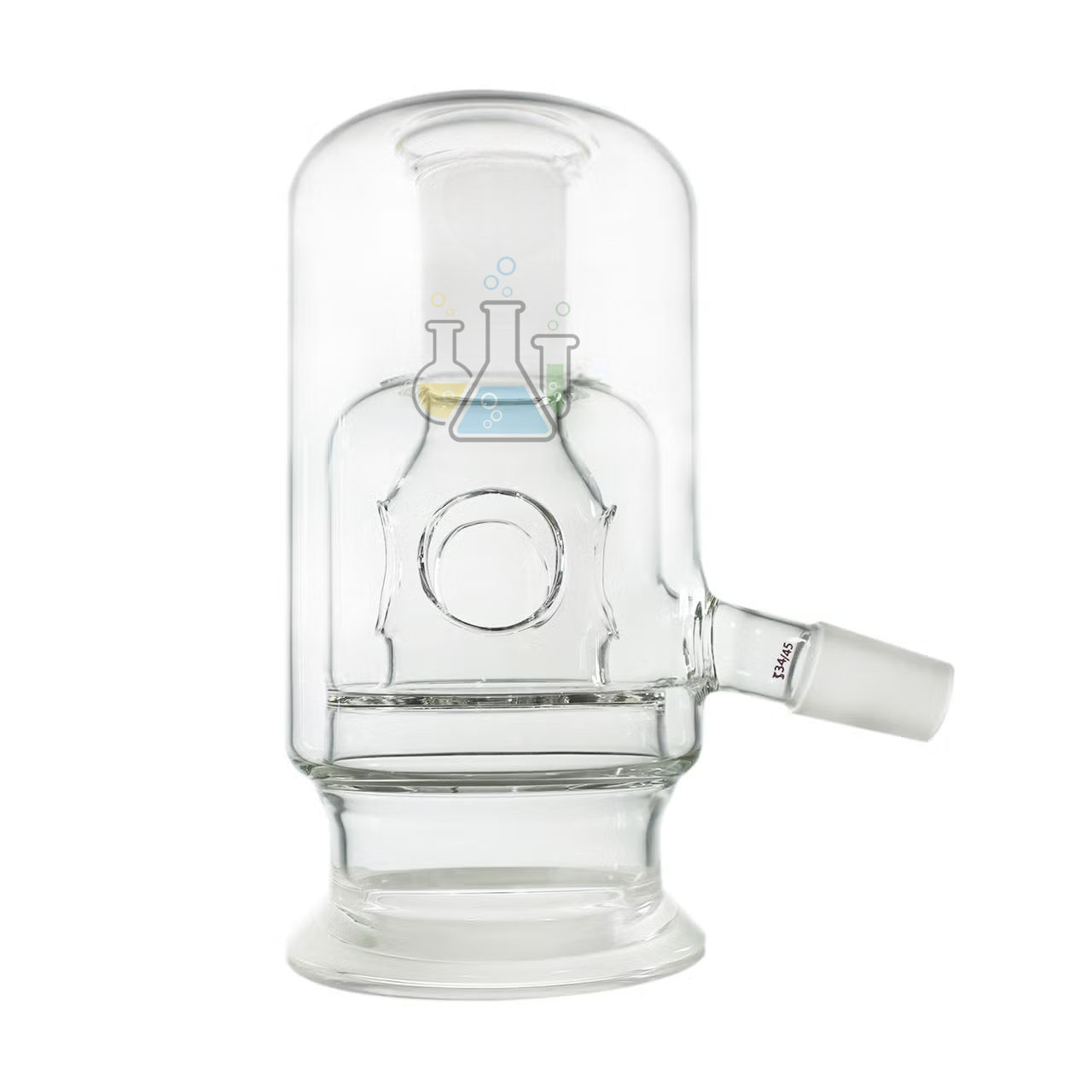

The N4 Jacketed Distillation Head is a laboratory distillation glassware component used for directing vapour from a compatible flask or reaction vessel toward a condenser or receiver assembly. This 100mm jacketed distillation head is specified with a 45/50 top joint and a 34/45 side joint for compatible chemistry setups.

Product Description

The N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side from Lab Glassware Manufacturer is intended for compatible distillation and vapour-transfer glassware assemblies. The confirmed product data identifies an N4 jacketed distillation head with a 100mm size reference, 45/50 top joint, and 34/45 side joint.

A jacketed distillation head helps route vapour through a controlled glassware path and can support advanced distillation, reflux, vapour-transfer, and condenser connection workflows when matched with the correct jointed apparatus. Exact material, jacket inlet/outlet design, lower joint, wall thickness, thermal rating, pressure/vacuum suitability, and certification status should be confirmed before final catalogue publication.

Key Features

• 100mm jacketed design: specified with a 100mm size reference for compatible distillation assemblies.
• 45/50 top joint: supports connection to compatible upper jointed glassware or apparatus components.
• 34/45 side joint: supports compatible side-arm condenser, receiver, or adapter arrangements.
• Capacity not applicable: this is a glassware connection component, not a volumetric vessel.
• Vapour-routing function: directs vapour through a controlled path during compatible distillation work.
• Laboratory glassware application: suitable for chemistry, research, teaching, and preparation-room setups.
• Specification-dependent use: material, vacuum rating, coolant connections, and thermal limits must be verified.

Technical Specifications

What's Included in the Kit

• N4 Jacketed Distillation Head 100mm with 45/50 top joint and 34/45 side joint
• Joint clips, hose connectors, thermometer adapter, condenser, receiver adapter, storage case, or certificate

Applications / Uses

• Building compatible laboratory distillation assemblies
• Routing vapour from boiling or reaction glassware toward a condenser
• Supporting short-path, reflux, or jacketed vapour-transfer setups where compatible
• Connecting 45/50 and 34/45 jointed glassware components
• Teaching distillation and vapour-condensation principles in advanced chemistry labs
• Use in research, testing, pharmaceutical, and preparation-room glassware workflows

How to Use the N4 100MM Jacketed Distillation Head

1. Confirm that the 45/50 top joint and 34/45 side joint match the intended apparatus.
2. Inspect the distillation head for cracks, chips, scratches, blocked passages, or damaged jacket ports.
3. Clean and dry all glass joints before assembly.
4. Attach the head to compatible flasks, condensers, receivers, or adapters as required by the method.
5. Support the complete assembly using proper stands, clamps, and joint clips.
6. Connect jacket tubing only after verifying inlet, outlet, hose size, and coolant compatibility.
7. Apply heat, cooling, vacuum, or pressure only within verified limits of the full apparatus.
8. Allow the assembly to cool before disassembly, cleaning, and storage.

Safety note: Do not use this distillation head with vacuum, pressure, corrosive vapours, high temperature, or hazardous solvents unless the material, jacket design, joints, and full system rating are verified. Use eye protection, gloves, clamps, and a fume hood where required.

Care & Maintenance

• Clean after use with a method suitable for the verified glass material and residue.
• Rinse thoroughly and dry before storage to prevent joint contamination.
• Store in padded glassware storage to protect joints, side arms, and jacket ports.
• Remove from service if cracks, chips, leaks, or visible stress marks appear.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, didactic models, and STEM learning products. The brand serves schools, colleges, universities, laboratories, exporters, and institutional procurement buyers. Its catalogue supports chemistry, biology, physics, laboratory glassware supply, and education-focused scientific experimentation.

Frequently Asked Questions

What is an N4 Jacketed Distillation Head used for?

An N4 Jacketed Distillation Head is used for routing vapour in compatible laboratory distillation assemblies and connecting jointed glassware components.

What does 45/50 top joint mean?

45/50 is the confirmed top joint size for this product. The mating glassware must have a compatible 45/50 joint before assembly.

What does 34/45 side joint mean?

34/45 is the confirmed side joint size for this product. It should be connected only to compatible 34/45 jointed glassware.

Is this distillation head made from borosilicate glass?

The supplied product name does not confirm the glass type. Add borosilicate, quartz, or other material claims only after verification.

Can this item be used under vacuum?

Vacuum suitability is not confirmed. Use under vacuum only if the distillation head, joints, wall thickness, jacket design, and complete apparatus are rated for that condition.

Does this product include clips or hose connectors?

The confirmed item is the N4 Jacketed Distillation Head. Clips, hose connectors, adapters, condensers, and certificates should be listed only after verifying the supplied configuration.
