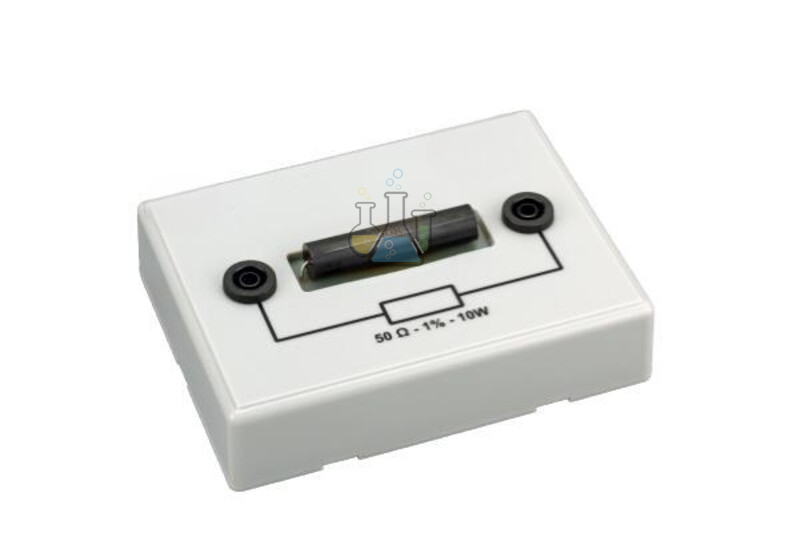

Resistor Based 50 Ohm

Product Code : SCL-EI-10630

The 50 Ohm Resistor Based Circuit Element from Lab Glassware Manufacturer is an educational fixed-resistance module engineered for demonstrating resistance, current control, voltage drop, and Ohm’s law in school physics and electronics laboratories. Manufactured and supplied from Ambala, Haryana, India since 1982, Lab Glassware Manufacturer exports circuit teaching components to schools, colleges, and STEM training institutes across Central America, including Guatemala, Honduras, Costa Rica, and Panama, supporting institutional procurement and export tenders throughout the region.

Quick answer: The 50 Ohm Resistor Based Circuit Element is a plug-in resistor module with a known, fixed 50 Ω resistance value, used with cells, LEDs, lamps, switches, and meters to run quantitative circuit experiments where the resistance is already known — suited to supervised school, college, and STEM electronics practicals.

Key Features

• Fixed 50 Ω resistor element for school electricity and electronics experiments.
• Useful for teaching resistance, Ohm’s law, current control, and voltage drop.
• Can be used with cells, LEDs, lamps, switches, meters, and plug-in circuit boards.
• Supports comparison activities when used with other resistor values.
• Helps students observe how resistance affects current and circuit output.
• Suitable for physics labs, electronics labs, STEM kits, and project-based learning.
• Designed for supervised educational use with correctly rated low-voltage circuits.

What’s Included

• 1 x 50 Ohm Resistor Based Circuit Element
• Protective packing for safe storage and dispatch
• Optional plug-in board, connecting leads, LEDs, switches, cells, or meters — only if specified in the order

Applications / Uses

• Demonstrating Ohm’s law in school physics laboratories.
• Showing how a 50 Ω resistor limits current in a circuit.
• Observing voltage drop across a known resistance value.
• Using LEDs, bulbs, buzzers, and meters in low-voltage experiments.
• Building STEM circuit models and classroom electronics activities.
• Pairing with General Lab Equipment circuit accessories for practical demonstrations.

How to Use the 50 Ohm Resistor Based Circuit Element

1. Check the confirmed power rating before connecting the resistor element.
2. Insert or connect the 50 Ω resistor into the compatible circuit board or teaching setup.
3. Connect the power source, switch, and load as shown in the circuit diagram.
4. Use a voltmeter or ammeter if the experiment requires measurement.
5. Observe how the resistor affects current, voltage drop, or output brightness.
6. Disconnect the power supply before removing or changing the resistor element.

Safety note: Do not exceed the confirmed power rating. A resistor can heat up if overloaded, incorrectly connected, or used with an unsuitable power source.

Care & Maintenance

• Store the resistor element in a dry, labelled component box after use.
• Keep terminals clean, dry, and free from corrosion.
• Do not use the component if the resistor body is burnt, cracked, or loose.
• Allow the component to cool before handling if it has been used in a loaded circuit.

Fixed Value vs. Unspecified Resistance

Unlike the general-purpose Resistance Based Circuit Element, whose resistance value is confirmed to order, the 50 Ohm Resistor Based Circuit Element carries a known, fixed 50 Ω value out of the box — useful for classes running quantitative Ohm’s law calculations without needing to look up the component first. It pairs naturally with a Red LED with Series Resistor or a Capacitor Based Circuit Element on the same Plug-In Board for Building Components to build multi-component demonstration circuits.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies educational laboratory products for schools, colleges, universities, science laboratories, and institutional procurement projects. The company supports laboratory glassware, scientific lab products, physics apparatus, electronic teaching aids, and STEM classroom equipment. Buyers can source the 50 Ohm Resistor Based Circuit Element for school tenders, circuit kits, physics labs, electronics demonstrations, and export-oriented educational supply requirements across Guatemala, Honduras, Costa Rica, and Panama. For safe classroom work, buyers may also pair electronics practicals with suitable Safety Protective Wears.

Frequently Asked Questions

What is a 50 Ohm Resistor Based Circuit Element used for?
A 50 Ohm Resistor Based Circuit Element is used to demonstrate electrical resistance, current control, voltage drop, and Ohm’s law in school physics and electronics circuits.

What does 50 Ω mean?
50 Ω means the resistor has a resistance value of fifty ohms. This value limits current according to the applied voltage and the circuit design.

Is this resistor module suitable for school students?
Yes. It is suitable for supervised school and STEM experiments when used with correctly rated low-voltage circuits and compatible teaching boards.

Can it be used with LEDs and bulbs?
Yes. It can be used with compatible LEDs, bulbs, buzzers, and meters to show how resistance affects current and output behaviour.

Why does the power rating matter?
The power rating tells how much electrical power the resistor can safely handle. Exceeding the rating can cause overheating or component failure.

What details should be confirmed before purchase?
Confirm the tolerance, power rating, connector style, compatible board type, quantity, dimensions, and whether additional accessories are included.
