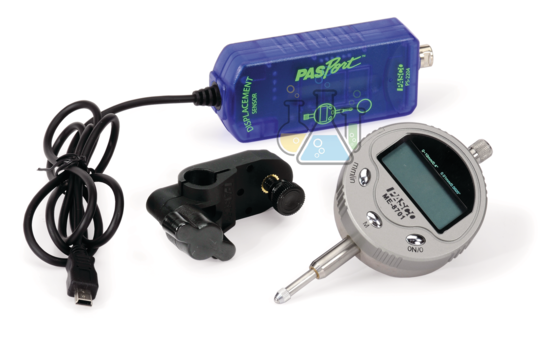

Position Sensor (Digital Dial Gauge) Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-10531

The position sensor digital dial gauge is a laboratory measuring instrument used for recording small displacement, deflection, position change, and movement in compatible physics, metrology, and material-testing experiments. It is suitable for schools, colleges, STEM laboratories, engineering training rooms, and physics practical setups requiring repeatable position measurement.

Product Description

The Position Sensor Digital Dial Gauge from Lab Glassware Manufacturer is intended for experiments where students need to measure linear displacement or deflection from a reference point. It can be used with compatible bending rigs, tensile test devices, structure kits, spring experiments, beam setups, and mechanical test frames.

This product should be described as a digital dial gauge or position sensor only after the final supplied configuration is confirmed. Measuring range, resolution, accuracy, output type, probe travel, mounting stem size, display type, battery type, and interface compatibility must be verified before publication or tender submission.

Key Features

• Digital position sensor for displacement and deflection measurement.
• Useful for beam bending, material testing, spring extension, and structure experiments.
• Digital display helps students read position changes more clearly than scale-only methods.
• Suitable for school physics labs, STEM labs, metrology labs, and engineering mechanics setups.
• Can support graph-based experiments when output and interface compatibility are confirmed.
• Useful as a measurement accessory for compatible static, tensile, or bending apparatus.
• Range, resolution, accuracy, mounting method, and output type must be confirmed.

Technical Specifications

What's Included in the Kit

• Position sensor / digital dial gauge
• Probe tip, contact point, or measuring spindle
• Mounting clamp, bracket, holder, or stem adapter
• Battery, cable, USB lead, or data-logger cable
• Calibration certificate, inspection sheet, or test report
• Instruction sheet or compatibility guide

Applications / Uses

• Measuring displacement and position changes in physics laboratory experiments.
• Recording beam deflection in bending and material testing setups.
• Measuring spring extension, compression movement, and mechanical travel.
• Supporting structure-kit, tensile-test, 4-point bending, and deformation experiments.
• Using with compatible products from Physics Lab Equipment.
• Supplying measurement accessories through General Lab Equipment.
• Requesting institutional or OEM supply through Tenders/OEM.
• Confirming final compatibility through Contact Us.

How to Use the Position Sensor (Digital Dial Gauge)

1. Confirm that the gauge range and mounting method match the experiment apparatus.
2. Inspect the spindle, probe tip, display, battery, and mounting accessories before use.
3. Mount the gauge securely so the probe touches the measurement point at the correct angle.
4. Set the gauge to zero at the selected reference position.
5. Apply load, motion, or displacement gradually according to the experiment method.
6. Read the digital display or record output through the confirmed interface.
7. Repeat the measurement and compare readings for consistency.
8. Release the load fully before removing the gauge or changing the setup.

Safety note: Do not force the probe beyond its travel range. Avoid side loading the spindle, dropping the gauge, or using it near moisture, dust, or impact without confirmed protection.

Care & Maintenance

• Keep the spindle, probe tip, display, and body clean and dry.
• Store the gauge in protective packing to avoid shock and misalignment.
• Remove batteries before long-term storage if required by the product guide.
• Check zero reading and calibration status before formal laboratory measurements.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational and institutional buyers. The brand supports schools, colleges, universities, distributors, and export customers with physics, engineering, electronics, and general laboratory products. This position sensor digital dial gauge can be supplied as a measurement accessory when final technical specifications are verified. Buyers should confirm range, accuracy, resolution, mounting method, and calibration documentation before procurement.

Frequently Asked Questions

What is a position sensor digital dial gauge used for?

A position sensor digital dial gauge is used to measure small displacement, deflection, position change, and mechanical movement in compatible physics, metrology, and material-testing experiments.

Is this the same as a complete data logging system?

No. It should be treated as a measuring gauge or sensor unless the final quotation confirms a data logger, software, cable, and interface are included.

Can it measure beam deflection?

Yes, if the gauge range, mounting bracket, contact point, and resolution are suitable for the beam bending or structural experiment.

Does the gauge include digital output?

Digital output is not confirmed. Add USB, data logger, wireless, or serial-output details only after checking the final product specification.

Is calibration documentation included?

Calibration documentation is not confirmed. Add certificate or traceability details only if supplied by the manufacturer or inspection agency.

What should be confirmed before ordering?

Confirm measuring range, resolution, accuracy, probe travel, display type, mounting method, output interface, power source, included accessories, and calibration certificate availability.

For more displacement, deflection, metrology, and mechanics measurement products, explore Physics Lab Equipment from Lab Glassware Manufacturer.
