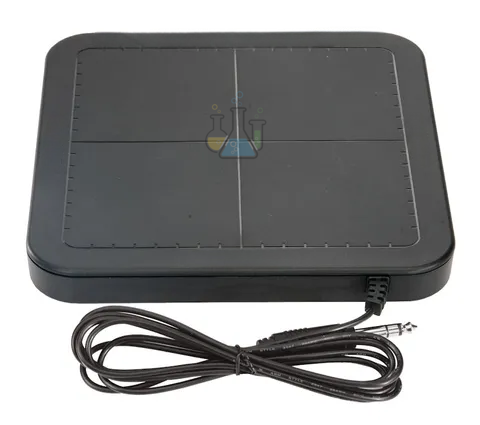

Impact Plate for Time-of-Flight Measurement Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-10489

The impact plate for time-of-flight measurement is a physics laboratory accessory used for detecting the landing or impact point of a moving projectile during motion experiments. It is suitable for schools, colleges, STEM laboratories, and physics practical rooms where students study projectile motion, flight time, range, and kinematics.

Product Description

The Impact Plate for Time-of-Flight Measurement from Lab Glassware Manufacturer supports controlled timing experiments in mechanics and projectile motion. It is used as the receiving surface where a ball, projectile, or test object strikes after launch, allowing the impact event to be observed or recorded through a compatible timing setup.

This accessory is useful when paired with launching devices, timers, light barriers, and motion-measurement apparatus. It helps students connect launch conditions, travel time, horizontal range, and gravitational motion through practical work. For related timing products, see the Student Timer with Pair of Light Barriers.

Key Features

• Designed for time-of-flight and projectile motion demonstrations.
• Provides a defined impact surface for landing-event detection or observation.
• Suitable for school, college, STEM, and supervised physics laboratory use.
• Useful with compatible projectile launchers, dropping devices, timers, and sensors.
• Supports practical study of flight time, range, acceleration due to gravity, and kinematics.
• Can help improve repeatability when the setup is aligned and used consistently.
• Final plate material, sensor type, cable connection, and compatibility must be confirmed.

Technical Specifications

What's Included in the Kit

• Impact plate for time-of-flight measurement
• Connection cable or plug lead
• Mounting base, clamp, or support accessory
• Instruction sheet or experiment guide
• Compatibility note for timer or projectile apparatus

Applications / Uses

• Measuring time of flight in projectile motion experiments.
• Detecting the landing point or impact event of a moving projectile.
• Studying the relationship between launch setting, flight time, and range.
• Using with a Mini Throwing Device for short-range projectile demonstrations.
• Pairing with a Throwing/dropping device for motion and free-fall studies.
• Combining with a Fork light barrier where optical launch timing is required.

How to Use the Impact Plate for Time-of-Flight Measurement

1. Place the impact plate on a stable bench, floor, or projectile range area.
2. Align the launcher, dropping device, or projectile apparatus with the expected landing path.
3. Connect the impact plate to the compatible timer or interface if the model supports electronic detection.
4. Set the launch height, angle, and range distance according to the experiment method.
5. Release the projectile without disturbing the setup.
6. Record the time-of-flight value or landing observation after impact.
7. Repeat the experiment and calculate average readings for better reliability.
8. Compare the measured result with theoretical projectile-motion calculations.

Safety note: Use only low-energy classroom projectiles approved for the apparatus. Keep students clear of the launch path and do not use damaged plates, loose cables, or unstable supports.

Care & Maintenance

• Clean the impact surface after each practical session.
• Store the plate flat or in protective packing to avoid bending or surface damage.
• Check cables, connectors, sensors, and mounting parts before repeated use.
• Do not expose electronic impact plates to liquids, shock loading, or incorrect voltage.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational institutions. The brand supports schools, colleges, universities, distributors, and export buyers with physics laboratory products and accessories. Its physics range includes timing devices, motion sensors, projectile apparatus, roller track accessories, and mechanics teaching equipment. Buyers should confirm final plate size, material, sensor method, and timer compatibility before procurement.

Frequently Asked Questions

What is an impact plate for time-of-flight measurement used for?

It is used to detect or observe the landing impact of a projectile so students can measure or compare time of flight in physics motion experiments.

Is this impact plate suitable for school physics labs?

Yes. It is suitable for supervised school and college physics laboratories studying projectile motion, kinematics, free fall, and range measurement.

Does the impact plate include an electronic sensor?

Sensor inclusion is not confirmed. Add electronic, acoustic, or contact-sensing details only after verifying the final supplied model.

Can it be used with a student timer?

Yes, if the plate output and timer input are compatible. Confirm connector type, voltage, signal format, and timing mode before use.

What experiments can students perform with it?

Students can study time of flight, projectile range, launch angle effects, falling motion, and comparison between measured and theoretical motion data.

What should be confirmed before ordering?

Confirm plate dimensions, material, detection method, cable type, timer compatibility, mounting accessories, and whether an instruction sheet is included.

For more projectile motion, timing, and mechanics products, explore the Physics Lab Equipment category from Lab Glassware Manufacturer.
