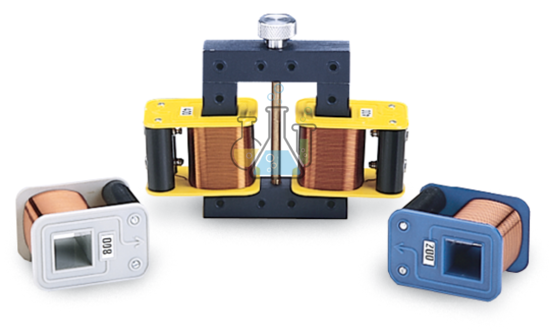

Student-Built Transformer Basic Set Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10553

The Student-Built Transformer Basic Set is a school physics apparatus used for building and testing a simple demonstration transformer from separate core and coil components. It is suitable for schools, colleges, STEM laboratories, electronics trainers, physics practical rooms, and student exercises on electromagnetic induction, alternating current, primary coils, secondary coils, step-up transformers, and step-down transformers.

Product Description

The Student-Built Transformer Basic Set from Lab Glassware Manufacturer is designed for hands-on learning where students assemble a working transformer arrangement using compatible coils and magnetic core parts. The set helps learners observe how alternating current in a primary coil creates changing magnetic flux in a core and induces voltage in a secondary coil.

This product should be described as a basic transformer construction set only after the final supplied component list is confirmed. The set may include a U-core, yoke, coils of different turn counts, coil holders, connecting leads, low-voltage AC power supply, meters, lamps, switches, and experiment guide depending on the supplied configuration. Final coil turns, voltage rating, current rating, core material, yoke design, insulation class, safety features, and included exercises must be verified before catalogue publication or tender submission.

Key Features

• Basic student transformer set for hands-on electromagnetic induction experiments.
• Useful for teaching primary winding, secondary winding, magnetic flux, induced voltage, and transformer ratio.
• Supports step-up and step-down transformer demonstrations when suitable coil combinations are supplied.
• Suitable for school physics labs, STEM labs, electronics labs, and teacher demonstrations.
• Allows students to assemble, test, compare, and understand transformer construction.
• Can be used with meters and low-voltage AC supply for safe classroom observations when ratings are verified.
• Coil turns, core material, voltage/current ratings, and included accessories must be confirmed.

Technical Specifications

What's Included in the Kit

• Transformer core or U-core
• Removable yoke, clamp, fixing screw, or core closure accessory
• Primary coil and secondary coil set
• Low-voltage AC power supply
• Voltmeter, ammeter, multimeter, lamp, switch, or load resistor
• Connecting leads, safety leads, or crocodile clips
• Storage box, tray, packing, or labelled component compartment
• Student worksheet, teacher manual, or experiment guide

Applications / Uses

• Building a simple transformer from separate coils and core components.
• Demonstrating mutual induction between primary and secondary windings.
• Studying step-up and step-down transformer behaviour using different turn ratios.
• Comparing input voltage, output voltage, current, load effect, and coil-turn ratio.
• Teaching magnetic flux, flux linkage, alternating current, core closure, and induced EMF.
• Using with related electromagnetism products from Physics Lab Equipment.
• Supporting electronics practical rooms through General Lab Equipment.
• Requesting institutional or OEM supply through Tenders/OEM and Contact Us.

How to Use the Student-Built Transformer Basic Set

1. Place the transformer core, coils, meters, and power supply on a dry, stable, insulated laboratory bench.
2. Confirm that the selected coils match the rated low-voltage AC supply and experiment guide.
3. Fit the primary and secondary coils onto the compatible core limbs according to the circuit diagram.
4. Place the yoke or core closure in position and secure it with the confirmed clamp or screw.
5. Connect the primary coil to the low-voltage AC supply using suitable insulated leads.
6. Connect a voltmeter, lamp, or load to the secondary coil as instructed.
7. Switch on the supply and compare primary and secondary voltage readings.
8. Change coil combinations to observe step-up or step-down action where the supplied set permits.
9. Switch off power before changing coils, moving the yoke, or modifying connections.

Safety note: Use only with a low-voltage classroom AC supply within the confirmed coil ratings. Do not connect coils directly to mains electricity, short the output, overload the windings, touch live terminals, or handle hot coils immediately after operation.

Care & Maintenance

• Keep coils, core, yoke, terminals, leads, and meters clean, dry, and free from metal filings.
• Store coils separately to prevent winding damage, terminal bending, or insulation wear.
• Check coil resistance, insulation, terminals, and lead condition before repeated student use.
• Do not drop laminated core pieces or bend the yoke, as poor alignment can affect magnetic coupling.
• Remove the set from use if coils overheat, emit odor, show damaged insulation, or produce abnormal readings.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational and institutional buyers. The brand supports schools, colleges, universities, research laboratories, distributors, and export customers with physics, electronics, engineering, and general laboratory products. This Student-Built Transformer Basic Set can be supplied for electromagnetism and induction experiments when final electrical and mechanical specifications are verified. Buyers should confirm coil turns, core material, voltage rating, current rating, included accessories, safety documentation, packing, and experiment guide before procurement.

Frequently Asked Questions

What is the Student-Built Transformer Basic Set used for?

It is used to let students assemble and test a simple transformer while studying mutual induction, primary and secondary coils, magnetic flux, and step-up or step-down voltage behaviour.

Is this a complete transformer kit?

It should be treated as a complete basic set only if the final quotation confirms that core, yoke, coils, leads, meters, low-voltage AC supply, loads, and experiment guide are included.

Can students perform step-up and step-down transformer experiments?

Yes, if the supplied coil set includes suitable different turn counts and the experiment guide specifies safe coil combinations for step-up and step-down demonstrations.

Does the set include a power supply?

Power supply inclusion is not confirmed. Add low-voltage AC power supply details only after checking the final supply list.

Can it be connected to mains electricity?

No. Student transformer coils should be used only with a suitable low-voltage classroom AC supply within the confirmed coil ratings.

What should be confirmed before ordering?

Confirm core type, core material, yoke design, coil turn counts, coil voltage and current ratings, wire gauge, insulation class, included meters, power supply, leads, loads, storage case, and experiment guide availability.

For more transformer, induction, electromagnetism, power supply, and student circuit apparatus, explore Physics Lab Equipment from Lab Glassware Manufacturer.
