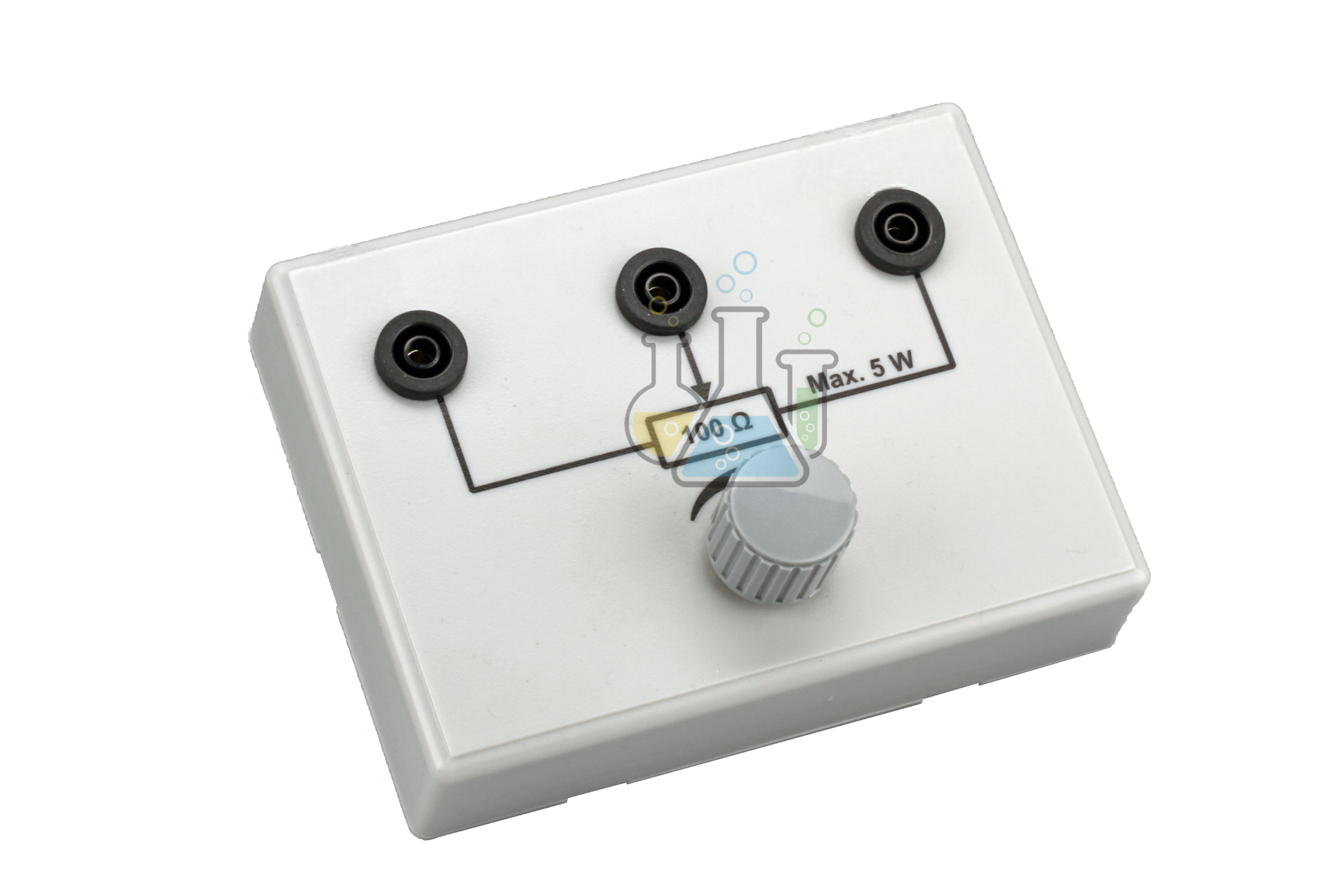

Potentiometer 100 Ohm Board Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10648

The 100 Ohm Potentiometer Board is an electrical laboratory component used for varying resistance in school physics, electronics, and circuit demonstration experiments. It is suitable for schools, colleges, STEM labs, electronics trainers, practical classrooms, distributors, and institutional procurement buyers that need a simple variable-resistance teaching aid.

Product Description

The 100 Ohm potentiometer based product from Lab Glassware Manufacturer is best described as a 100 Ω potentiometer board or potentiometer base for low-voltage electrical experiments. The supplied product name confirms the 100 Ohm resistance value, but the exact body style, power rating, tolerance, terminals, and base construction must be confirmed before final publication.

A 100 Ω potentiometer is commonly used to demonstrate variable resistance, voltage division, current control, brightness variation, and basic circuit adjustment. It can be connected with cells, lamps, resistors, meters, switches, and trainer boards where the circuit voltage and current remain within the confirmed safe rating.

Key Features

• 100 Ω resistance value: suitable for basic resistance-variation and voltage-divider demonstrations.
• Physics and electronics use: supports hands-on circuit learning in school and college laboratories.
• Variable-resistance control: allows students to observe how changing resistance affects current or voltage.
• Board/base format: intended for bench-top teaching use where the final mounting style is confirmed.
• Capacity not applicable: this is an electrical component, not a liquid-volume product.
• Compatible with circuit apparatus: can be used with meters, lamps, cells, leads, and trainer boards where verified.
• Specification-dependent safety: wattage, current limit, insulation, and terminal design must be confirmed.

Technical Specifications

What's Included in the Kit

• 100 Ohm Potentiometer Board / Base
• Terminals, knob, connection leads, label, instruction sheet, storage box, or certificate

Applications / Uses

• Demonstrating variable resistance in electrical circuits
• Building simple voltage-divider circuits
• Controlling current in low-voltage classroom circuits
• Studying Ohm’s law and resistance effects
• Using with analogue meters, lamps, cells, and electronics trainer boards
• Supporting school physics, STEM, and basic electronics practicals

How to Use the 100 Ohm Potentiometer Board

1. Confirm the potentiometer power rating, voltage limit, terminal layout, and resistance value before use.
2. Inspect the knob, shaft, terminals, board, and connecting leads for damage.
3. Connect the potentiometer into the circuit according to the experiment diagram.
4. Use the two end terminals for full resistance or use the wiper terminal for variable output where marked.
5. Start with a low-voltage supply and rotate the control slowly.
6. Observe the change in meter reading, lamp brightness, or output voltage.
7. Do not exceed the confirmed current or power rating.
8. Disconnect the power supply after the experiment and store the board safely.

Safety note: Use only in low-voltage educational circuits unless the product is specifically rated otherwise. Do not connect the potentiometer directly across a high-current supply, mains power, or circuits exceeding the confirmed wattage.

Care & Maintenance

• Store the potentiometer board dry and away from dust, heat, and chemical vapours.
• Do not force the rotating shaft beyond its end stops.
• Keep terminals clean and tighten loose connectors before classroom use.
• Remove from service if overheating, burning smell, cracked insulation, or unstable readings occur.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its product range supports physics lab equipment, electronic instruments, general lab equipment, and educational laboratory procurement. The brand supplies schools, colleges, universities, research institutions, industrial laboratories, distributors, and export buyers.

Frequently Asked Questions

What is a 100 Ohm Potentiometer Board used for?

A 100 Ohm Potentiometer Board is used to vary resistance or divide voltage in low-voltage physics and electronics experiments.

Is 100 Ohm the resistance value?

Yes. The supplied product name confirms a 100 Ohm / 100 Ω resistance value.

What is the power rating?

The power rating is not confirmed. Add the wattage only after checking the product label, datasheet, or supplier confirmation.

Can it be used for Ohm’s law experiments?

Yes. It can be used for Ohm’s law and resistance-control experiments when the circuit current remains within the confirmed safe rating.

What terminals are provided?

The terminal type is not confirmed. Add binding posts, banana sockets, screw terminals, or other connector details only after verification.

Is it suitable for school laboratories?

Yes. It is suitable for supervised school and college electronics practicals when used with safe low-voltage supplies and correct circuit connections.
