What is a 1 F Capacitor Board used for?

A 1 F Capacitor Board is used to demonstrate charge storage, capacitor discharge, RC timing, and basic capacitance behaviour in physics and electronics labs.

1 F means 1 farad of electrical capacitance. It is the charge-storage capacity of the capacitor, not a liquid-volume capacity.

What voltage rating does it have?

The voltage rating varies by unit — check the product label, datasheet, or listing to confirm the rated voltage before ordering.

Is the capacitor polarized?

Polarity varies by unit — confirm whether the capacitor is polarized before writing connection instructions or printing terminal markings.

Can it be used for RC circuit experiments?

Yes. It can be used for RC charging and discharging experiments when the resistor value, supply voltage, and capacitor rating are suitable.

Is it suitable for school laboratories?

Yes. It is suitable for supervised school and college electronics practicals when used with safe low-voltage supplies and proper discharge procedure.

Home » Our Product » Physics Lab Equipment » Electronic Instruments » One F Capacitor Board

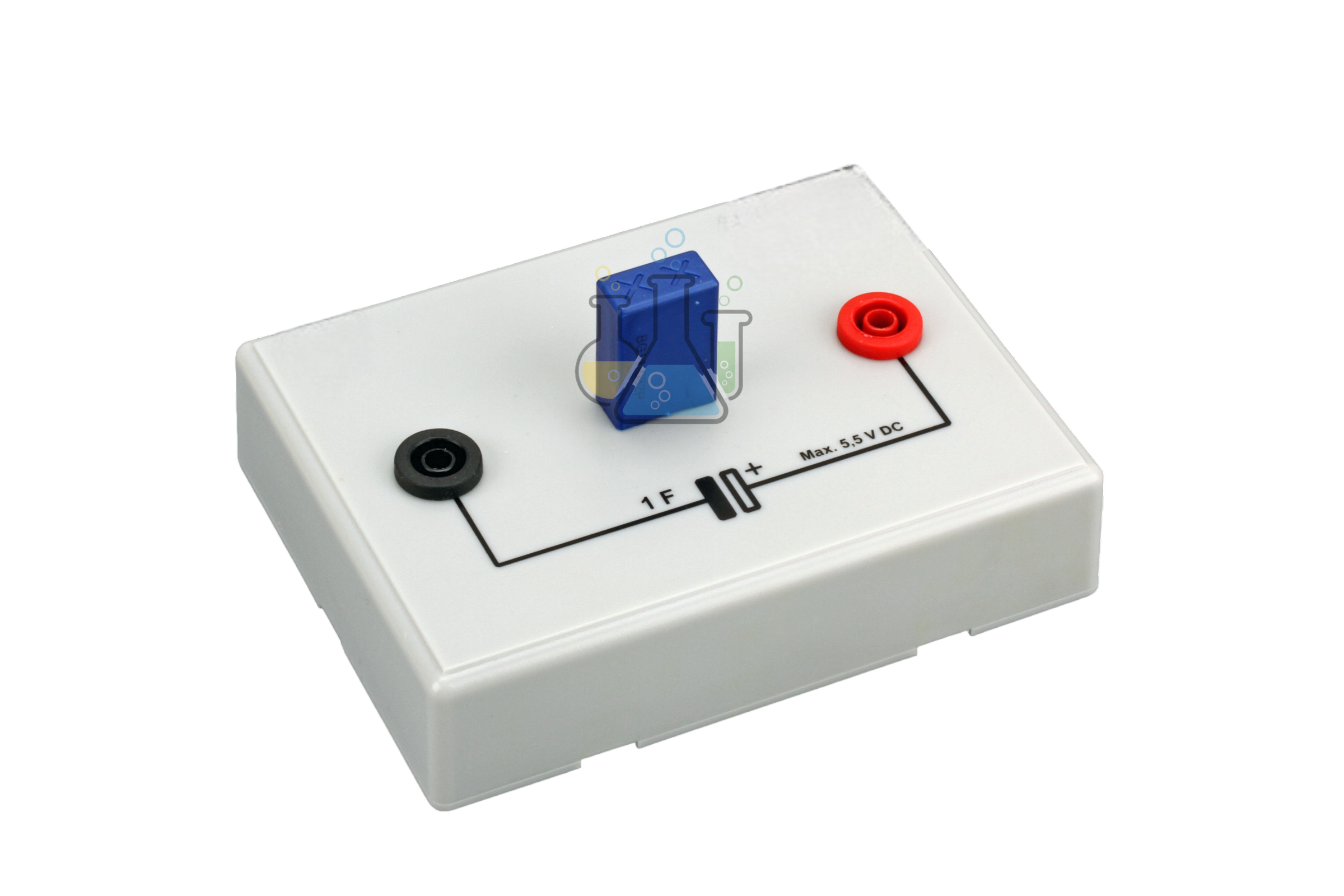

One F Capacitor Board

Product Code : SCL-EI-10651

The 1 F Capacitor Board from Lab Glassware Manufacturer, a scientific and educational equipment manufacturer based in Ambala, Haryana, India, since 1982, is an electronics laboratory component used for demonstrating electrical charge storage, capacitor discharge, RC timing behaviour, and stored-energy circuits in school and college physics and electronics labs. It is supplied to schools, colleges, and institutional buyers across India and exported to countries including the United Arab Emirates, Saudi Arabia, Qatar, and Oman, with growing demand across the wider Middle East region for hands-on electronics and STEM circuit-demonstration equipment.

Quick answer: The 1 F Capacitor Board is a bench-top laboratory board built around a 1 farad capacitor, used to demonstrate visible charge-and-discharge behaviour, RC timing curves, and stored-electrical-energy concepts that are difficult to show with small classroom capacitors. The exact voltage rating, polarity, capacitor type, and board material vary by model — check the specific listing before ordering.

Technical Specifications

Specification	Detail
Product Name	1 F Capacitor Board
Brand	Lab Glassware Manufacturer
Product Category	Physics Lab Equipment / Electronic Instruments / Electrical Circuit Apparatus
Electrical Capacity	1 F (1 farad) — electrical capacitance, not liquid volume
Format	Board / base-mounted, for bench-top laboratory handling
Voltage Rating & Polarity	. Educational circuit use across physics, electronics, STEM, and trainer-board experiments. RC circuit demonstrations allowing students to observe capacitor charging and discharging over time. Board/base format for bench-top laboratory handling, with final mounting details confirmed at order stage. Large stored charge compared with small classroom capacitors, useful for visible lamp-fading and RC discharge-curve demonstrations. Hands-on learning when combined with switches, resistors, lamps, meters, LEDs, and low-voltage DC supplies. What Is Included 1 F Capacitor Board/Base, terminals, resistor, switch, and leads. Labels, an activity sheet, storage box, or certificate may be included depending on the configuration ordered — confirm exact contents with Lab Glassware Manufacturer before ordering. Applications / Uses Demonstrating capacitor charging and discharging Building RC timing circuits in school electronics labs Showing stored electrical energy in a low-voltage circuit Observing lamp, LED, or meter response during discharge Teaching capacitance, voltage rating, polarity, and safe discharge practice Supporting STEM, physics, and electronics trainer-board practicals How to Use the 1 F Capacitor Board Confirm the voltage rating, polarity, and maximum safe current before connecting the board. Inspect the capacitor, base, terminals, insulation, and leads for damage. Connect the board to a low-voltage DC circuit using the correct polarity if the capacitor is polarized. Use a resistor in series where required to limit charging current. Charge the capacitor only up to the confirmed rated voltage. Disconnect the supply and observe the discharge through a resistor, lamp, LED, or meter. Discharge the capacitor safely before handling or storing it. Safety note: A 1 F capacitor can retain charge after the power supply is removed. Do not short the terminals directly, exceed the voltage rating, reverse polarity on polarized capacitors, or use the board with mains electricity. Care & Maintenance Store the capacitor board dry, dust-free, and fully discharged. Keep terminals clean and secure before classroom use. Do not expose the capacitor to heat, moisture, reverse polarity, or overvoltage. Remove the product from use if swelling, leakage, overheating, or unstable readings occur. Fixed vs Modular Capacitor Teaching Apparatus Lab Glassware Manufacturer offers two distinct capacitor-based teaching products, and choosing between them depends on the lesson objective. The 1 F Capacitor Board is a dedicated, fixed-value 1 farad board built specifically for visible large-capacitance charge-and-discharge demonstrations, RC timing curves, and stored-energy teaching. The Capacitor Based Circuit Element is a modular plug-in component designed to slot into a breadboard-style circuit-building system alongside other elements such as the plug-in board for building components and resistance-based circuit element, letting students build a wider range of general circuits rather than focus on one large-capacitance demonstration. Labs building a flexible circuit-construction kit typically choose the modular element, while labs wanting a clear, standalone demonstration of large-capacitance charge and discharge choose the dedicated 1 F board. Why Choose Lab Glassware Manufacturer Lab Glassware Manufacturer manufactures and exports laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its product range supports physics lab equipment, electronic instruments, general lab equipment, and educational laboratory procurement. The brand supplies schools, colleges, universities, research institutions, industrial laboratories, distributors, and export buyers across India and international markets including the United Arab Emirates, Saudi Arabia, Qatar, and Oman. Frequently Asked Questions What is a 1 F Capacitor Board used for? A 1 F Capacitor Board is used to demonstrate charge storage, capacitor discharge, RC timing, and basic capacitance behaviour in physics and electronics labs. What does 1 F mean? 1 F means 1 farad of electrical capacitance. It is the charge-storage capacity of the capacitor, not a liquid-volume capacity. What voltage rating does it have? The voltage rating varies by unit — check the product label, datasheet, or listing to confirm the rated voltage before ordering. Is the capacitor polarized? Polarity varies by unit — confirm whether the capacitor is polarized before writing connection instructions or printing terminal markings. Can it be used for RC circuit experiments? Yes. It can be used for RC charging and discharging experiments when the resistor value, supply voltage, and capacitor rating are suitable. Is it suitable for school laboratories? Yes. It is suitable for supervised school and college electronics practicals when used with safe low-voltage supplies and proper discharge procedure. Related Products Capacitor Based Circuit Element Resistance Based Circuit Element Plug-in Board for Building Components Request a Quote For pricing, bulk institutional orders, or tender submissions, please contact Lab Glassware Manufacturer or visit our lab tender page. Last updated: September 2026
