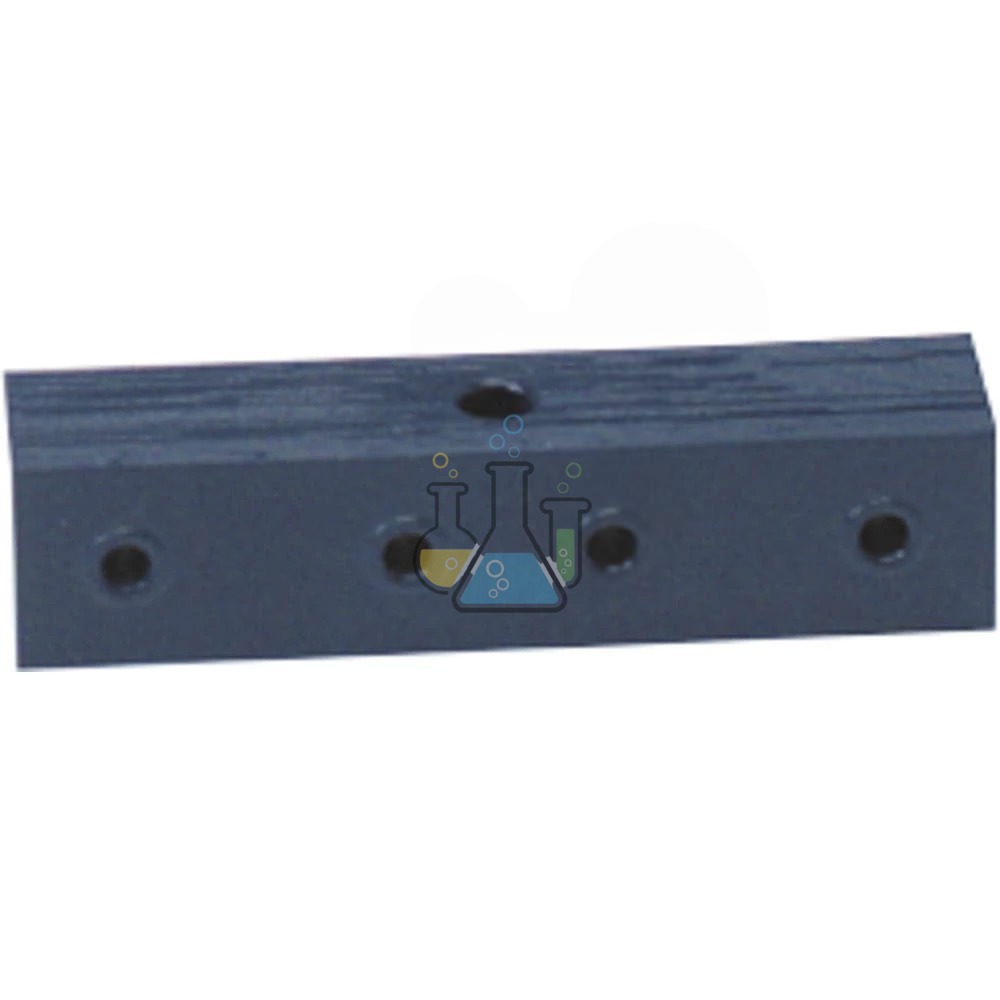

I-Core Flipped Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10554

The I-Core Flipped is a physics laboratory magnetic-core accessory used for transformer, induction, electromagnetism, and magnetic-circuit demonstrations. It is suitable for schools, colleges, STEM laboratories, electronics trainers, physics practical rooms, and student experiments using compatible coils, U-cores, E-cores, yokes, meters, and low-voltage power supplies.

Product Description

The I-Core Flipped from Lab Glassware Manufacturer is designed for experiments where an I-shaped core piece is positioned or reversed to complete, modify, or compare a magnetic path. In classroom transformer and induction activities, the I-core can act as a removable closing section for compatible core assemblies, helping students observe how core position, air gap, alignment, and magnetic flux path affect induced voltage and magnetic coupling.

This product should be described as a magnetic-core accessory, not as a complete transformer set unless coils, U-core or E-core, yoke, clamps, meters, connecting leads, power supply, and experiment guide are confirmed in the final supply. Final material, lamination type, length, width, thickness, cross-section, flipping orientation, compatible core system, and fixing method must be verified before catalogue publication or tender submission.

Key Features

• I-shaped magnetic-core piece for electromagnetism and transformer demonstrations.
• Useful for teaching magnetic flux path, core closure, air gap, induction, and magnetic coupling.
• Can be used with compatible U-core, E-core, coils, yoke, and transformer accessories where verified.
• Suitable for school physics labs, electronics labs, STEM labs, and engineering training rooms.
• Helps students compare magnetic behaviour when the I-core is fitted, removed, aligned, or flipped.
• Supports induction and transformer lessons when used with safe low-voltage AC experiments.
• Core material, lamination, dimensions, and compatibility must be confirmed before ordering.

Technical Specifications

What's Included in the Kit

• I-shaped magnetic core piece
• Flipped or reversible orientation arrangement
• Clamp, fixing screw, guide slot, or holder
• Compatible U-core, E-core, yoke, coils, or pole pieces
• Connecting leads, meters, power supply, or transformer accessories
• Instruction sheet, experiment guide, or compatibility note

Applications / Uses

• Completing or modifying a magnetic circuit in transformer and induction experiments.
• Demonstrating magnetic flux path, air gap, core alignment, and magnetic coupling.
• Showing the effect of fitting, removing, reversing, or flipping an I-core piece.
• Using with compatible coils and low-voltage AC supply for transformer demonstrations.
• Supporting experiments on induced voltage, flux linkage, electromagnets, and core losses where suitable accessories are supplied.
• Using with related products from Physics Lab Equipment.
• Supporting electronics and magnetism practical rooms through General Lab Equipment.
• Requesting institutional or OEM supply through Tenders/OEM and Contact Us.

How to Use the I-Core Flipped

1. Place the compatible core assembly, coils, meters, and power supply on a dry, insulated laboratory bench.
2. Confirm that the I-core matches the U-core, E-core, coil bore, and experiment setup.
3. Fit the coils onto the compatible core limbs according to the experiment diagram.
4. Place the I-core in the required normal or flipped orientation to complete or modify the magnetic path.
5. Secure the I-core with the confirmed clamp, screw, guide slot, or holder if supplied.
6. Connect the coils to a suitable low-voltage AC or DC supply as specified by the experiment.
7. Observe changes in magnetic attraction, induced voltage, transformer action, or meter readings.
8. Switch off power before changing the I-core position, flipping orientation, coil connections, or core arrangement.

Safety note: Use only within the confirmed coil and power-supply ratings. Do not connect coils directly to mains electricity, short the supply, touch energized terminals, or handle hot coils and cores immediately after operation.

Care & Maintenance

• Keep the I-core clean, dry, and free from rust, dust, moisture, and metal filings.
• Store the I-core with its matching core set to avoid mismatch or loss.
• Do not drop, bend, hammer, or force the core into an incompatible holder.
• Protect laminated faces from damage, separation, and corrosion.
• Inspect coils, leads, clamps, and core alignment before repeated student use.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies laboratory glassware, scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational and institutional buyers. The brand supports schools, colleges, universities, research laboratories, distributors, and export customers with physics, electronics, engineering, and general laboratory products. This I-Core Flipped accessory can be supplied for transformer, induction, and magnetic-circuit experiments when final mechanical and electrical compatibility details are verified. Buyers should confirm core dimensions, material, lamination, flipping orientation, compatible core system, and included accessories before procurement.

Frequently Asked Questions

What is an I-Core Flipped used for?

An I-Core Flipped is used to complete, reverse, or modify a magnetic path in transformer, induction, electromagnetism, and magnetic-circuit experiments.

Is this a complete transformer kit?

No. It should be treated as a magnetic-core accessory unless the final quotation confirms that coils, U-core or E-core, yoke, leads, meters, power supply, and experiment guide are included.

What does “flipped” mean for an I-core?

It usually means the I-core is reversed or repositioned in the experiment setup to compare alignment, air gap, or magnetic-circuit behaviour. The exact orientation must be confirmed from the final drawing or manual.

Can it be used with transformer coils?

Yes, if it is compatible with the supplied or specified coils, core frame, and transformer experiment set. Confirm coil bore, core size, and safe electrical ratings before use.

Is the I-core laminated?

Lamination is not confirmed for this supplied product. Add laminated iron, soft iron, silicon-steel, ferrite, or solid-core details only after verifying the product specification.

What should be confirmed before ordering?

Confirm core material, lamination, length, width, thickness, cross-section, flipped orientation, compatible U-core or E-core system, fixing method, included accessories, packing, and instruction guide availability.
