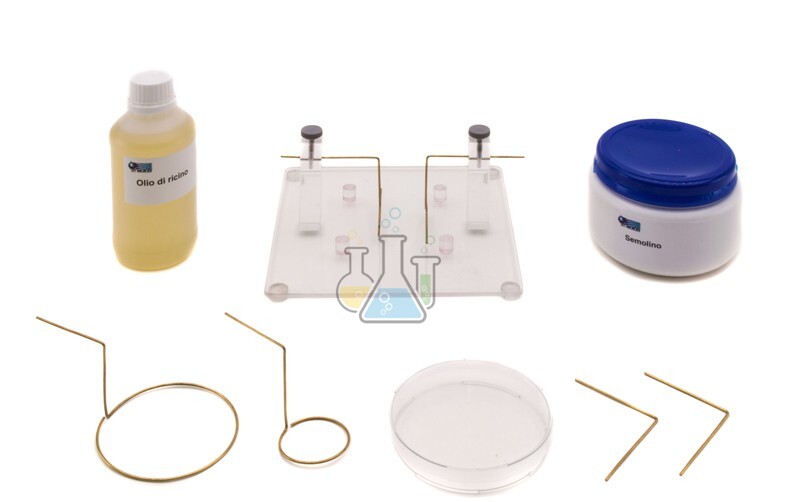

Electric field lines apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-EI-10692

The electric field lines apparatus is a physics laboratory teaching set used for demonstrating electric field patterns, equipotential lines, electrode configurations, and electrostatic field direction in school and college laboratories. It helps students visualize how electric fields form between conductors and how field lines relate to potential difference.

Product Description

The Electric Field Lines Apparatus from Lab Glassware Manufacturer is designed for electrostatics and electricity demonstrations where students need a practical way to observe field patterns. It can support lessons on point electrodes, plate electrodes, field direction, equipotential mapping, and the relationship between voltage and electric field geometry.

This product belongs to the physics lab equipment category and is intended for supervised educational use. The exact electrode type, base design, conductive medium, voltage requirement, measuring accessories, and supplied components should be confirmed before final quotation because electric field line apparatus designs vary by syllabus and experiment method.

Key Features

• Field pattern visualization: Helps students observe how electric field lines form around different electrode shapes.
• Electrostatics teaching aid: Supports lessons on electric field direction, potential difference, and charge interaction.
• Useful for equipotential mapping: Can support practical work on equipotential lines when used with compatible accessories.
• Classroom demonstration format: Suitable for teacher-led school and college physics practicals.
• Compatible with lab instruments: Can be used with approved power supplies, meters, probes, and electronic instruments where rated.
• Reusable apparatus: Designed for repeated demonstrations when handled, cleaned, and stored correctly.
• Safety-conscious operation: Intended for supervised low-voltage educational experiments only.

Technical Specifications

What's Included in the Kit

• 1 × Electric Field Lines Apparatus main unit
• Electrodes or electrode plates
• Connecting leads, probes, or terminals
• Conductive paper, tray, board, or display medium
• Instruction sheet or experiment guide

Applications / Uses

• Visualizing electric field lines between different electrode configurations.
• Mapping equipotential points and drawing equipotential curves.
• Demonstrating field direction from higher potential to lower potential.
• Comparing field patterns for point, plate, ring, or irregular electrodes where supplied.
• Teaching electrostatics, voltage distribution, and electric field geometry.
• Supporting practical lessons with compatible general lab equipment.

How to Use the Electric Field Lines Apparatus

1. Place the apparatus on a clean, dry, stable laboratory bench.
2. Set the required electrode configuration according to the experiment guide.
3. Connect the electrodes only to the approved low-voltage power source.
4. Use the supplied or compatible probe, meter, or observation method to locate field or equipotential points.
5. Record the measured points and draw the field line or equipotential pattern.
6. Switch off the power source before changing electrodes, leads, or measuring positions.

Safety note: Do not connect the electric field lines apparatus directly to mains electricity. Use only the confirmed low-voltage rating and perform all experiments under teacher or laboratory instructor supervision.

Care & Maintenance

• Wipe the base, electrodes, and leads with a dry cloth after use.
• Keep electrodes clean to maintain reliable electrical contact.
• Store the apparatus in a dry cabinet away from moisture and corrosive chemicals.
• Use suitable safety protective wears during broader electrical laboratory demonstrations.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational laboratories. The company supports schools, colleges, universities, research institutions, and institutional procurement projects with practical teaching products. Its range covers physics apparatus, laboratory glassware, classroom kits, and demonstration models for complete laboratory supply requirements.

Frequently Asked Questions

What is an electric field lines apparatus used for?

An electric field lines apparatus is used to demonstrate electric field patterns, equipotential lines, electrode effects, and voltage distribution in physics laboratories.

Is this apparatus suitable for school physics labs?

Yes. It is suitable for supervised school and college physics practicals when used with approved low-voltage equipment.

What experiments can students perform with it?

Students can observe field patterns, map equipotential lines, compare electrode shapes, and study the direction of electric fields.

Does the apparatus include electrodes?

Electrodes are normally central to this type of apparatus, but the exact electrode shapes and quantity should be confirmed before order placement.

Does it require a power supply?

Most electric field line demonstrations require a suitable low-voltage power supply, but the exact voltage rating and supply inclusion must be confirmed.

What should be confirmed before quotation?

Confirm electrode types, operating voltage, medium or base design, measuring accessories, lead set, dimensions, and any tender compliance documents.

Request the Electric Field Lines Apparatus for your electrostatics practical setup, or explore more physics lab equipment for complete school laboratory supply.
