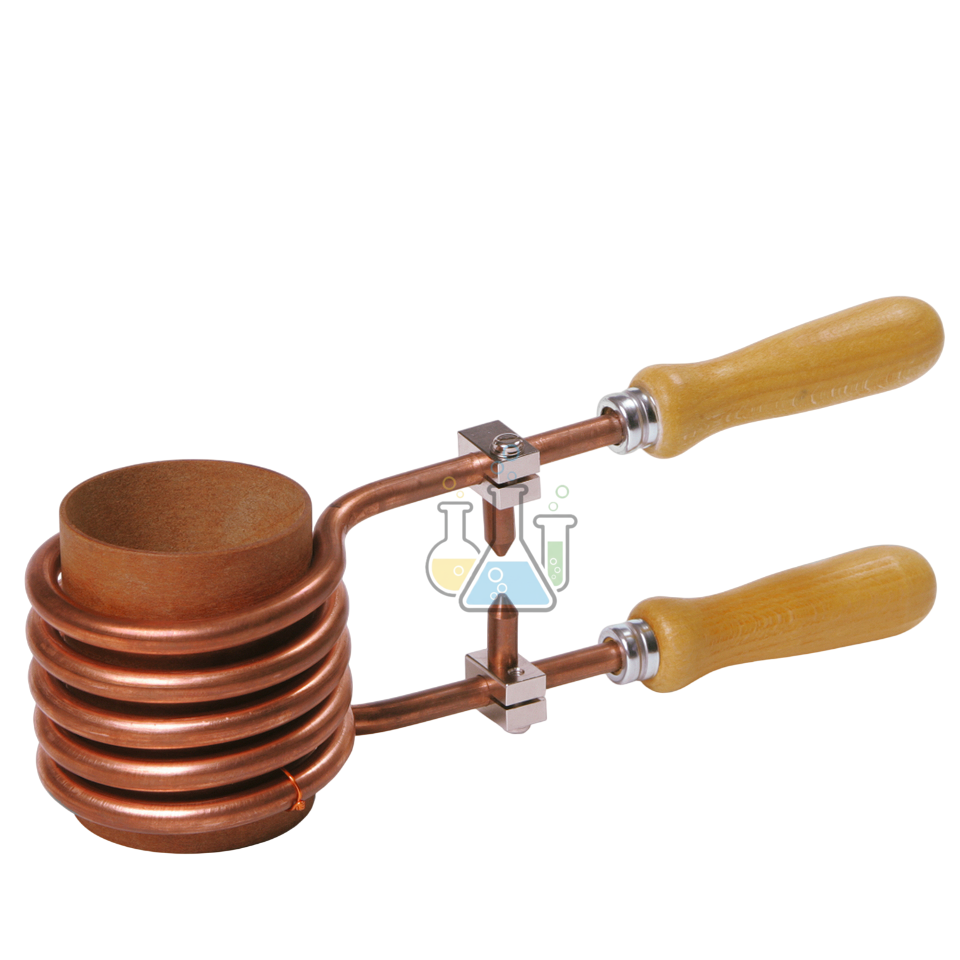

Coil With Five Turns

Product Code : SCL-EI-10701

Lab Glassware Manufacturer, based in Ambala, Haryana, and manufacturing scientific and educational laboratory equipment since 1982, supplies the Coil with 5 Turns to physics departments, STEM laboratories, and procurement teams across India and export markets including Kenya, Tanzania, Uganda, and Ethiopia, serving the wider East African region. This fixed low-turn coil is used to demonstrate electromagnetism, magnetic field production, electromagnetic induction, and current effects in school and college physics laboratories.

Quick Answer: The Coil with 5 Turns is a low-winding-count demonstration coil used with a low-voltage supply, magnet, or galvanometer to show induced current, magnetic field formation, and polarity effects, and to compare winding behaviour against higher-turn coils such as the 12-turn or 400-turn versions.

The Coil with 5 Turns from Lab Glassware Manufacturer is designed for electricity and magnetism practicals where a defined low-turn winding is required. It can be used to demonstrate induced current, magnetic field response, polarity effects, and comparison with coils having different numbers of turns. This product belongs to the physics lab equipment category and is intended for supervised educational use. Wire material, coil diameter, resistance, current rating, terminal type, insulation, and mounting arrangement should be confirmed with Lab Glassware Manufacturer before final quotation, since these details vary by production batch.

Key Features

• 5-turn coil design: Provides a defined winding count for repeatable electromagnetism demonstrations.
• Useful for induction experiments: Supports lessons on magnetic flux change, induced current, and coil response.
• Ideal for comparison studies: Can be compared with coils of higher turn counts to show the effect of winding number.
• Classroom demonstration value: Helps teachers make magnetic field and current concepts observable.
• Compatible with lab circuits: Can be used with suitable low-voltage supplies, magnets, meters, and electronic instruments where rated.
• Reusable teaching component: Suitable for repeated physics practicals when handled correctly.

What's Included in the Kit

• 1 × Coil with 5 Turns
• Terminal posts, leads, or connectors
• Mounting base, support, or holder
• Instruction sheet or experiment guide

Applications / Uses

• Demonstrating magnetic field formation around a current-carrying coil.
• Showing induced current when a magnet moves relative to the coil.
• Comparing 5-turn coil behaviour with coils of different winding counts.
• Supporting practical lessons on electromagnetic induction and magnetic flux.
• Using with compatible meters, magnets, low-voltage supplies, and general lab equipment.
• Building STEM demonstrations on generators, solenoids, and current effects.

How to Use the Coil with 5 Turns

• Place the coil on a stable, dry laboratory bench or compatible support.
• Check the winding, insulation, terminals, and connectors for visible damage.
• Connect the coil only to a suitable low-voltage supply or approved measuring circuit.
• Place a magnet, compass, galvanometer, or field sensor near the coil according to the experiment plan.
• Switch on the circuit briefly or move the magnet through the coil to observe the response.
• Record the observation and disconnect the coil after completing the practical.

Safety note: Do not connect the Coil with 5 Turns directly to mains electricity. Use only the confirmed low-voltage rating, avoid overheating, and use suitable safety protective wears during broader electrical laboratory demonstrations.

Care & Maintenance

• Store the coil in a dry cabinet after use.
• Do not pull, bend, unwind, or reshape the coil.
• Keep terminals clean and free from corrosion for reliable contact.
• Replace the coil if insulation, winding, or connectors become damaged.

Comparing Coils Across Turn Counts

The 5-turn coil is the lowest-winding member of Lab Glassware Manufacturer's electromagnetism coil range, used specifically to give students a fixed, easily countable baseline before moving to higher-turn windings. For side-by-side induction comparisons, it is commonly used alongside the Coil with 12 Turns, the Coil with 400 Turns, and the Mains Coil with 600 Turns, letting a class observe how induced voltage and magnetic response scale with winding count using the same demonstration method. Confirm core and terminal compatibility with Lab Glassware Manufacturer if these coils are intended to be used together on a shared transformer core.

Why Choose Lab Glassware Manufacturer

Lab Glassware Manufacturer supplies scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational laboratories. The company supports schools, colleges, universities, research laboratories, and procurement projects, and its range covers physics apparatus, classroom kits, laboratory glassware, and experiment accessories for complete laboratory supply requirements across India and export markets such as Kenya, Tanzania, Uganda, and Ethiopia.

Frequently Asked Questions

What is a coil with 5 turns used for?
A coil with 5 turns is used for physics experiments involving electromagnetism, magnetic field production, electromagnetic induction, and current effects.

Why does the number of turns matter in a coil?
The number of turns affects induced voltage and magnetic response. A 5-turn coil gives a low fixed winding count for comparison with coils of higher turns.

Can this coil be used in school physics labs?
Yes. It is suitable for supervised school and college physics laboratories when used with compatible low-voltage apparatus.

Does the coil require a power supply?
It may require a suitable low-voltage power source for magnetic field demonstrations. Induction demonstrations may also use a moving magnet and a meter.

What material is used for the winding?
The winding material is not specified in the supplied data. Confirm whether the wire is copper, enamelled copper, or another conductor before quotation.

What should be confirmed before ordering?
Confirm coil diameter, wire material, resistance, current rating, connector type, mounting arrangement, and any tender compliance documents.

Related Products

• Coil with 12 Turns
• Coil with 400 Turns
• Mains Coil with 600 Turns

Request a Quote

Request the Coil with 5 Turns for your electricity and magnetism practical setup, or explore more electronic instruments and physics lab equipment for complete school laboratory supply. To request a formal quotation, contact Lab Glassware Manufacturer. For institutional and government procurement, see current lab equipment tenders.
